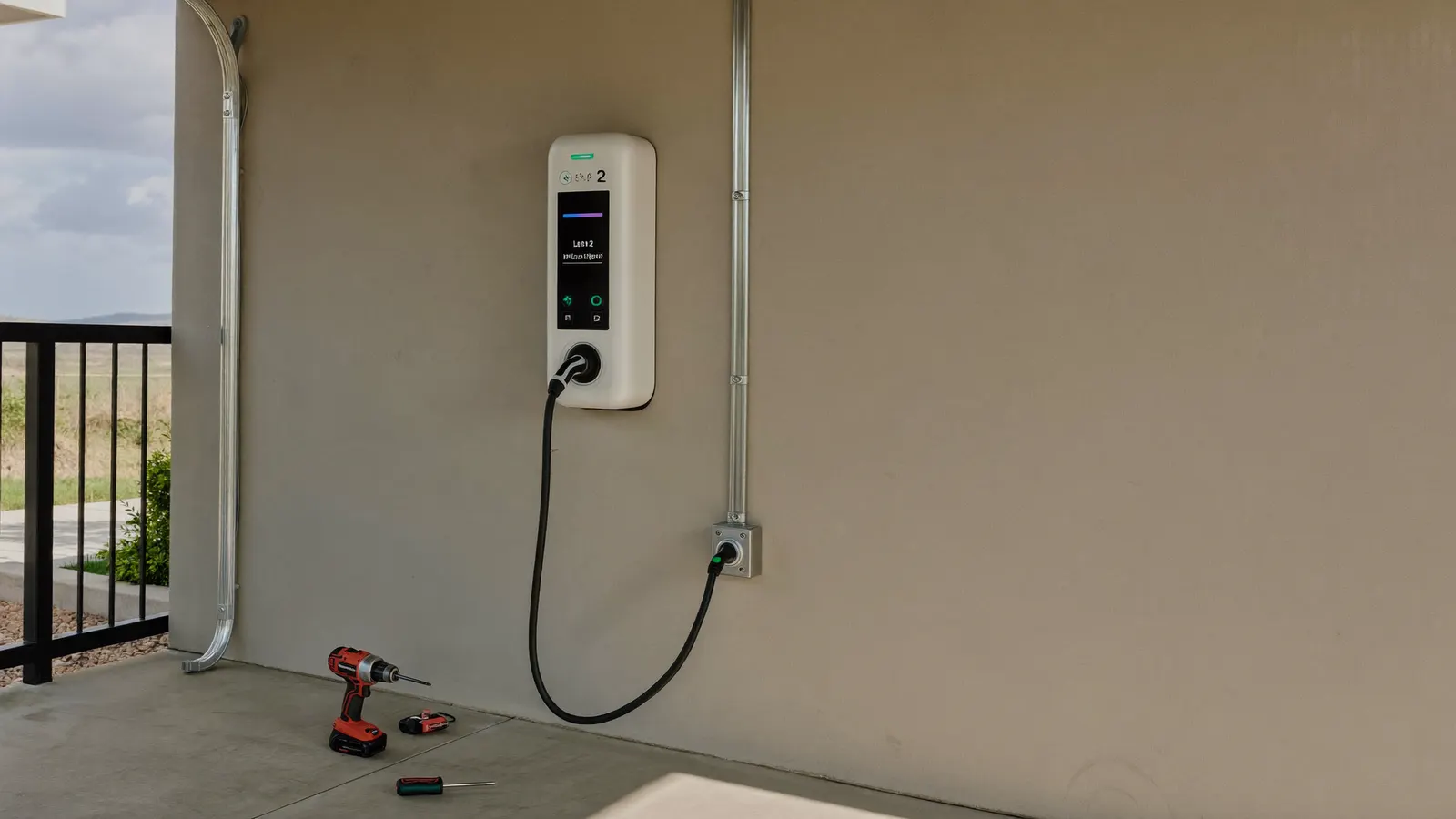

Level 2 EV Charger Installation: Complete Guide to Home Charging Speed
A Level 2 EV charger installation puts a dedicated 240-volt circuit between your electrical panel and a charging unit, replacing the 3 to 5 miles of range per hour a standard outlet delivers with roughly 10 to 31 miles per hour depending on the amperage installed. For most households the whole job — panel check, circuit, charger and permit — lands between $800 and $3,000 when the charger is close to the panel on a service with spare capacity. The two things that move that number the most are how far the circuit has to run and whether your panel has room without a service upgrade.
Updated 2026-08-20
What "Level 2" means
Level 1 is the cord that comes with the car, plugged into an ordinary 120-volt household outlet. Level 2 is a 240-volt circuit, either a dedicated outlet or a hardwired unit, sized specifically for EV charging. DC fast charging is a third tier entirely — industrial-scale equipment found at public stations along travel corridors, not something a home electrical service supports.
The jump from Level 1 to Level 2 is the one that actually changes daily life. Level 1 replaces roughly 3 to 5 miles of range for every hour plugged in. Level 2, depending on the amperage installed, replaces roughly 10 to 31 miles per hour — enough to refill a full day of driving in a few hours instead of overnight.
| Level | Voltage | Typical home use | What it needs |
|---|---|---|---|
| Level 1 | 120 V | Light daily driving, an existing outlet | Nothing — plug in the cord that shipped with the car |
| Level 2 | 208–240 V | Most households, especially longer commutes or a second EV | A dedicated circuit, usually with a licensed electrician and a permit |
| DC Fast | 400 V+ DC | Public corridor charging, not a home installation | Industrial-scale service, transformer and switchgear work |
What the installation actually involves
The charger on the wall is the easy part. Almost everything that decides whether the job is simple or expensive happens between the panel and the parking spot.
How amperage sets your charging speed
Charging speed is volts times amps. At 240 volts, the common residential settings run from 16 amps up to 48 amps, and each step trades a bigger breaker and thicker wire for a shorter charge time. Almost nobody needs the fastest option — the honest test is whether the amperage you pick refills a normal day's driving inside the hours the car is parked at home, not how big the number on the box is.
| Charger current | Required breaker | Power at 240 V | Approx. range added per hour |
|---|---|---|---|
| 16 A | 20 A | 3.8 kW | About 10 miles |
| 24 A | 30 A | 5.8 kW | About 16 miles |
| 32 A | 40 A | 7.7 kW | About 21 miles |
| 40 A | 50 A | 9.6 kW | About 26 miles |
| 48 A | 60 A | 11.5 kW | About 31 miles |
What it costs, start to finish
The charger itself is a small part of the bill. The circuit — how far it runs, what it crosses, and whether the panel has room without a service upgrade — is where the real money is. These are the site's modelled national ranges for the complete job: panel check, circuit, charger and permit.
| Scope | Modelled installed range | What drives it |
|---|---|---|
| Attached garage, panel close by, spare capacity | $800 – $3,000 | Short, simple circuit run; no service upgrade needed |
| Longer run or work inside a finished wall | $2,000 – $4,500 | Labor to route the circuit, not the materials |
| Detached garage or a trench across the yard | $2,000 – $6,000 | Excavation and restoring whatever the trench crosses — lawn, pavers or concrete |
| Add a service upgrade because the panel is out of room | +$1,500 – $3,000 for the electrical work, plus the panel itself at $500 – $5,000 | Only needed when a load calculation shows the service can't carry the added load |
The variable that decides which price you get
A service upgrade is the single largest line item a quote can carry, and it only belongs there if a load calculation actually shows the panel can't support the new circuit. The National Electrical Code recognizes two ways to check: NEC 220.83, a standard calculation for adding a load to an existing home, and NEC 220.87, which uses twelve months of your utility's own recorded maximum demand and often passes houses that the first method fails on paper.
If a quote includes a panel upgrade, ask which method was used and ask to see it. If it doesn't, ask the same question — a missing load calculation is how an undersized circuit gets installed.
Permit and inspection
A new 240-volt EV charging circuit is permitted electrical work in most US jurisdictions. The permit is typically filed before or on install day, and the job isn't finished, for insurance or resale purposes, until the final inspection passes and the permit is closed. Fees commonly run $50 to $800 and vary widely by county and city, and turnaround for the inspection is usually days to a couple of weeks depending on the local office's schedule.
Hardwired or plug-in outlet
Above 40 amps there's no choice — a receptacle is limited to 40 amps of continuous draw, so every 48-amp charger is hardwired. At 40 amps and below, hardwiring removes the one connection most likely to wear (the plug and receptacle contacts under sustained current), while a plug-in NEMA 14-50 lets you take the charger with you if you move and can double as an outlet for a welder or an RV.
No federal credit is offsetting any of this
Section 30C terminated for property placed in service after June 30, 2026, under 26 U.S.C. §30C(i) as amended by section 70504 of Public Law 119-21. A Level 2 installation completed today gets $0 federal credit, for the circuit or the charger. Whatever your state or your electric utility offers is the entire incentive picture on a home charger now, and those programs vary enormously by provider — worth checking by name before you assume a discount that no longer exists.
What does a Level 2 EV charger installation include?
A panel capacity check, a dedicated 240-volt circuit sized to the charger's amperage, a correctly rated breaker, the charger mounted and either hardwired or plugged into an outlet, and a filed permit closed out by a passed inspection. The circuit is the expensive part; the charger itself is usually the smaller line item.
How much does a Level 2 charger installation cost?
Most households pay $800 to $3,000 installed when the charger is close to the panel and the service has spare capacity. A longer circuit run or work inside finished walls moves that to $2,000–$4,500. A detached garage or trench runs $2,000–$6,000. A service upgrade, only needed when a load calculation shows the panel is out of room, adds roughly $1,500–$3,000 for the electrical work plus the panel itself.
How fast does Level 2 charging add range?
Roughly 10 to 31 miles of range per hour, depending on the amperage the charger is set to — about 10 miles at 16 amps up to about 31 miles at 48 amps. That compares with 3 to 5 miles per hour from a standard 120-volt outlet. Most households are fully served at 32 to 40 amps.
How long does the installation itself take?
Install day usually runs a few hours to a full day for a straightforward attached-garage circuit. The permit and inspection add extra time on either side — commonly a few business days for the permit and days to a couple of weeks for an inspection slot, and that schedule runs on the local building department, not the electrician.
Do I need a permit for a Level 2 charger?
In most US jurisdictions, yes. Installing a new 240-volt circuit for EV charging is permitted electrical work almost everywhere, and skipping it can create problems at resale or with an insurance claim later, since the circuit was never inspected.
Will my electrical panel handle a Level 2 charger?
Often, yes — a properly performed load calculation is what actually answers this, not the panel's age or its main breaker size. If it doesn't have room, a service upgrade or a load-management device are the two usual fixes; both are covered in more depth on the panel-upgrade guide linked below.
Is there still a tax credit for installing a home EV charger?
No federal one. Section 30C terminated for any property placed in service after June 30, 2026. State and utility rebate programs still exist in places and vary by provider, so they're worth checking by name, but there is no longer a federal credit to count on.
- NFPA 70, National Electrical Code — Article 625 (EV charging as a continuous load), 210.19/210.20 and 625.41 (conductor and breaker sizing at 125% of continuous load), 220.83 and 220.87 (load calculation methods for an existing dwelling)
- US DOT — Rural EV Toolkit, charger types and speeds (Level 1, Level 2 and DC fast charging compared)
- US DOE Alternative Fuels Data Center — electric vehicle charging stations and charging levels
- Qmerit — Understanding your EV home charging station costs for installation
- HomeAdvisor — Cost to install an electric vehicle charging station
- IRS — Alternative Fuel Vehicle Refueling Property Credit (§30C status)
- US DOE Alternative Fuels Data Center — Law 10513 (§30C termination)
