EV Charger Cost: New Construction vs. Retrofit

Wiring for EV chargers during construction costs a fraction of doing the same work after the building is finished. Virginia Clean Cities, drawing on the Southwest Energy Efficiency Project's guide to EV infrastructure building codes, states that installation costs during the initial construction phase run four to six times less than retrofitting the same infrastructure later.A separate three-scenario cost study from The Solar Foundation, prepared for the American Cities Climate Challenge, found the same pattern at a finer grain and put real dollars on it. Retrofitting EV-capable infrastructure — conduit and reserved panel capacity, no wiring yet — cost 6.7 times more than building it in on a small retail lot, 4.8 times more on a mid-size office or school, and 4 times more on a large office, retail or hospital campus. The multiple shrinks as the project gets bigger. It does not go away.

It goes to reopening a building that is already closed up, not to the wire itself. In the same study's small-commercial scenario, demolishing existing pavement and equipment to run new conduit cost $7,136 in the retrofit case and $0 during new construction. The trench for the raceway does not exist yet when the building is being built, so there is nothing to demolish and nothing to patch.Two more line items tell the same story. Asphalt and concrete repair ran $4,452 in the retrofit scenario and $0 in new construction. Permitting, inspection and fees ran $3,726 retrofit versus $1,179 new construction, because a retrofit permit is usually a second plan review and a second inspection cycle layered onto a building that already went through both once.Virginia Clean Cities puts a specific figure on just the paving piece: removing and repairing 100 to 300 linear feet of surface parking to add conduit can run over $10,000 in demolition alone, before a single conductor is pulled.

Trenching and panel work planned during construction happens on an open site with no tenants, no parking demand and no circuit that cannot be shut off for an afternoon. The same work on a finished property means coordinating outages, working around parked cars, and in a multifamily building, scheduling around residents who need power overnight.That is a scheduling and labor cost more than a materials cost, and it is why retrofit trenching and panel work is quoted at a premium even when the linear footage matches exactly what a new-construction crew would run. It shows up in the higher permitting and construction-management lines above rather than as its own line item on a quote.

Bigger properties see a smaller retrofit penalty because a larger panel and service upgrade spreads its permitting and management overhead across more parking spaces. The same study found new-construction savings of 73 to 85 percent for EV-capable infrastructure depending on property size, 67 to 79 percent for EV-ready circuits, and 59 to 75 percent for a fully installed charging station.The savings shrink at each tier for a simple reason: the charging station hardware itself costs the same whether it is bought on day one or in year five, so it dilutes the civil-work savings as it gets added to the total. Across every scenario the study modeled, building during construction saved more than 58 percent. No property size or building type came out ahead by waiting.

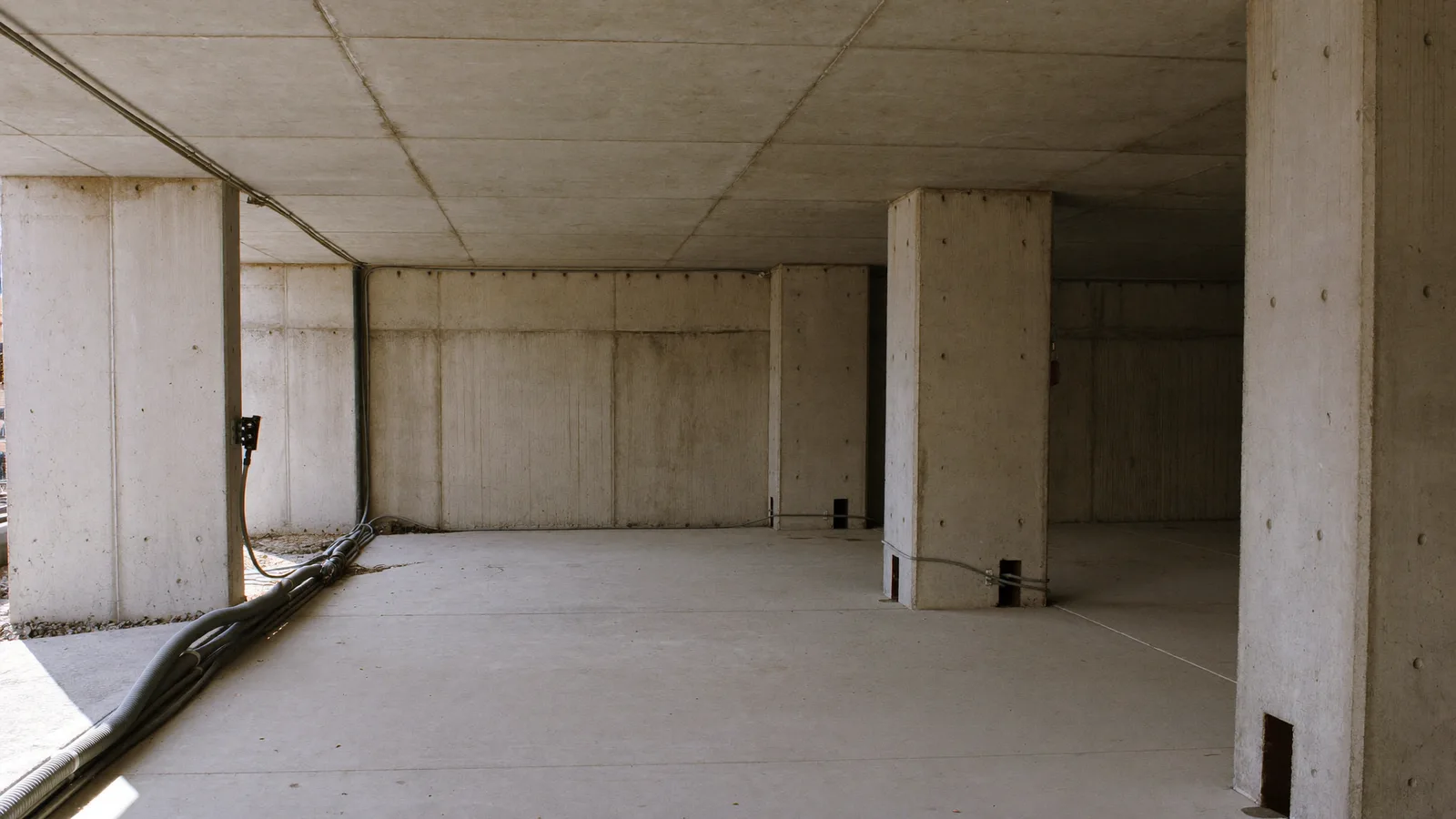

Build the raceway and reserve the panel capacity now; the charger itself can wait. The savings above are concentrated in the EV-capable work — conduit and panel headroom — because that is the part that requires opening ground and walls that are already open during construction. The charging station is a bolt-on hardware purchase that costs about the same whether it is bought this year or five years from now.Size the raceway for more than today's plan. A conduit run pulled for a 40-amp circuit will not take conductors for a higher-current charger later, and the entire economic case for building EV-capable now collapses if the pipe has to be dug up again in five years because it was undersized. Oversizing the raceway during construction costs very little; correcting it afterward means paying the full retrofit premium a second time.For apartment and condo construction specifically, EV-ready — not just EV-capable — is worth the extra step for a meaningful share of spaces. Most residents plug in their own portable Level 2 unit rather than waiting for the property to install hardware, so a terminated circuit and receptacle does more for a unit's marketability than an empty pipe does.

Do not model a federal tax credit into either number. The Section 30C commercial charger credit does not apply to property placed in service after June 30, 2026, and there is no federal replacement for it. Whatever savings exist have to come from the construction-timing decision itself, or from a state, utility or local program tied to your specific site — those vary by location and are worth checking against your utility's make-ready program before you finalize a design.
