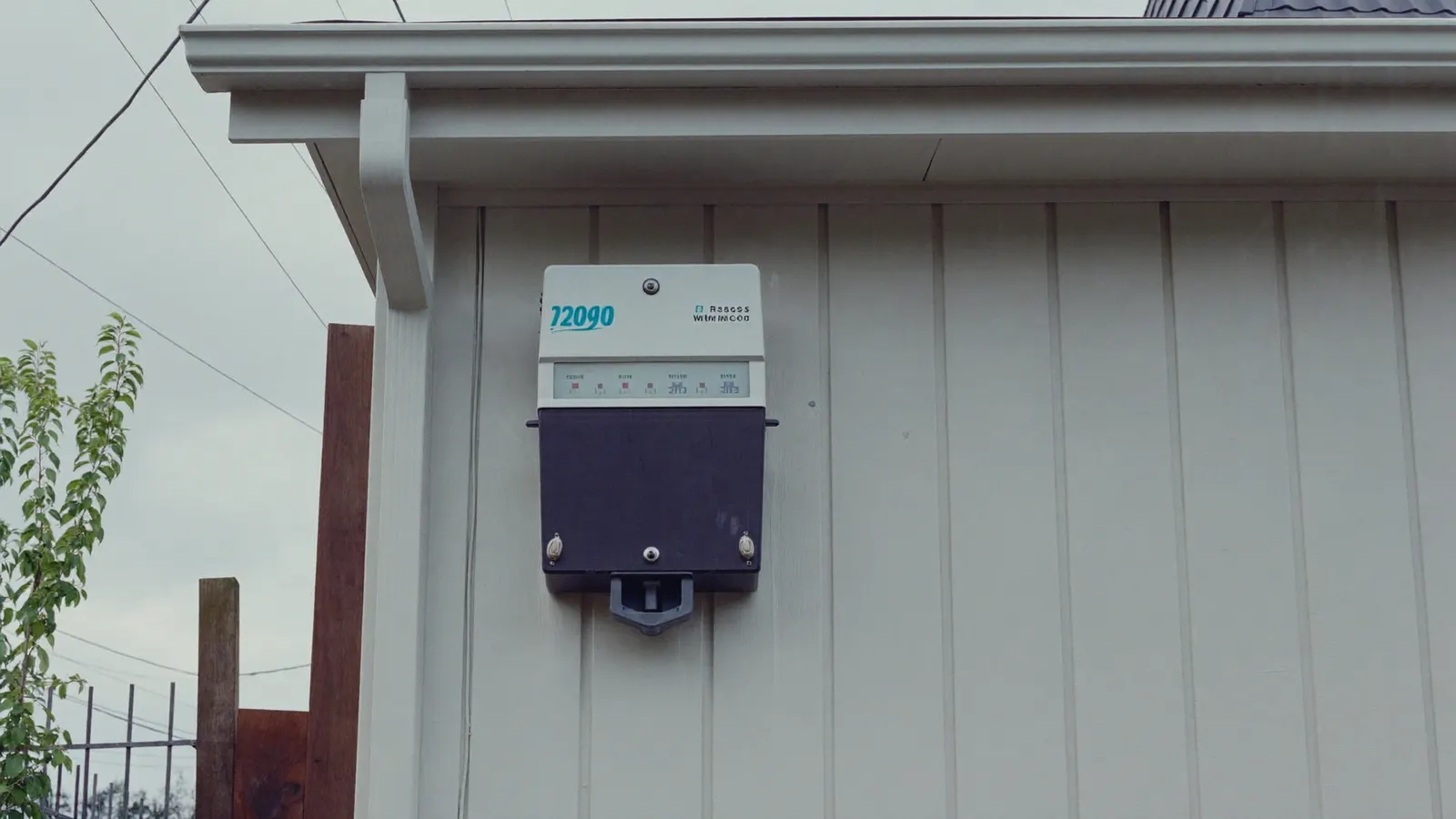

Meter Base and Service Entrance Replacement for EV Charging Loads

Four separate pieces of equipment carry power from the utility's line to your panel, and an EV-triggered upgrade can touch any subset of them. The meter base, sometimes called the meter socket or meter can, is the metal enclosure the utility's meter plugs into. The service mast is the rigid conduit — usually running up through or past the roofline on an overhead service — that the service-entrance conductors travel through. The weatherhead, also called a service head or gooseneck, is the fitting at the top of the mast that keeps rain out of the wiring where it connects to the utility's overhead line, or the drop. And the service-entrance conductors themselves are the wires that run from that connection point down through the mast, through the meter base and into the panel.Ownership of these pieces is not uniform, and that is worth knowing before you assume who is paying for what. The meter itself — the actual measuring device — is almost always utility property. The meter base, mast, weatherhead and service-entrance conductors are typically the homeowner's equipment, installed and maintained by a licensed electrician, even though the utility usually specifies the construction standard they have to meet and has to inspect or approve the work before it energizes anything. Exactly where that boundary sits, and what the utility calls it, varies by utility service territory — ask your electrician which parts your specific utility considers its own before you assume the invoice matches the ownership.

A meter base is not a generic box. It is a piece of listed equipment rated for a maximum amperage — commonly 100, 150, 200 or 320/400 amps — the same way a breaker panel is. Under NEC 110.3(B), equipment has to be installed in accordance with its own listing, so a meter base rated for 100 amps cannot simply have a 200-amp service run through it because the panel behind it got bigger. If your load calculation shows the house needs 200-amp service to fit a 48-amp EV circuit alongside everything else you run, the 100-amp meter base is now undersized by definition, whether or not it looks fine.This is exactly the calculation covered on this site's load-calculation page: NEC 220.83 adds up appliance nameplates with demand factors, NEC 220.87 uses your utility's own metered demand history, and since the 2023 NEC, section 220.57 requires the EV charging load to be counted in that calculation at 7,200 volt-amperes or the nameplate rating, whichever is larger. If either method shows the house needs more amperage than the existing service provides, the service size is what has to change — not just the panel inside the house, but the meter base, and usually the mast and conductors, that are rated for the old, smaller number.The reverse is just as important. If the load calculation shows your existing service has room — even with the EVSE floor counted — none of this equipment needs to change for the charger. A full service upgrade triggered by a car that a load calculation says the house didn't need is the expensive mistake this page exists to help you avoid.

These figures come from four independently published national cost guides, cited by row rather than blended into one number. Read them as bands, not quotes, and expect your address, your utility's construction standard and your mast height to move you within — or outside — any of them.

An electrician can replace the meter base, mast, weatherhead and interior panel entirely on their own license — but they cannot legally work on any of it live, and in most territories they cannot reconnect it either. The utility has to pull the meter before work starts, and it has to inspect, approve and reset the meter before the new service is energized. On some upgrades, the utility also has to replace or resize the service drop or lateral feeding your property, which is entirely their equipment and their scheduling queue.This is usually the longest part of the project, and it is the part your contractor cannot compress. A meter base swap with no service-size change might be a same-day disconnect and reconnect. A full service upgrade tied to a new EV circuit — bigger meter base, bigger mast, resized conductors, and a utility that has to confirm its own drop or transformer can support the new size — can add weeks to a job the electrical work itself finishes in a day.Ask two questions before you sign anything: who is submitting the application to the utility, and what is the utility's current turnaround for a service-size increase in your area. Neither answer comes from your electrician's calendar.

A few National Electrical Code provisions decide what a service-entrance job actually has to include, and they matter for EV planning specifically because they set the floor for what gets installed while the mast and meter base are already open.NEC 230.79(C) sets a 100-ampere minimum rating for the service disconnecting means on a one-family dwelling — the real-world floor under any residential service, EV or not. NEC 230.42 requires the service-entrance conductors to be sized to the calculated load determined under Article 220, which is exactly where the 220.57 EVSE floor and your charger's continuous-load rating come in: the conductors in the mast have to be sized for what the load calculation says the house needs, not for what was adequate before the charger existed. NEC 230.28 requires a mast used to support service-drop conductors to have adequate mechanical strength, or bracing sufficient for the strain, which is a real consideration where a heavier or higher conductor run is proposed. And NEC 230.54 governs where the service head or gooseneck sits relative to the point of attachment and how the wiring drains, which is the rule that keeps water out of a mast an electrician just resized for you.None of these sections are about the EV charger directly — Article 625 covers that separately, and it's covered on this site's load-calculation and circuit-sizing pages. What they decide is whether the service equipment your electrician proposes is legal to energize once the utility resets the meter, and they are the reason a service-entrance quote that skips the mast and conductors and only mentions the panel is an incomplete quote.

A load calculation tells you whether the service needs more capacity. It does not tell you whether the equipment you already have is safe to keep using at any capacity. These are the field signs worth a look, ideally before an electrician quotes the EV circuit rather than after.

Four questions, roughly in the order they save you money.
